Example 5: Restoration to other pubsets

Writing files and job variables with a directory file from a save tape or MT cartridge to pubsets other than the originals.

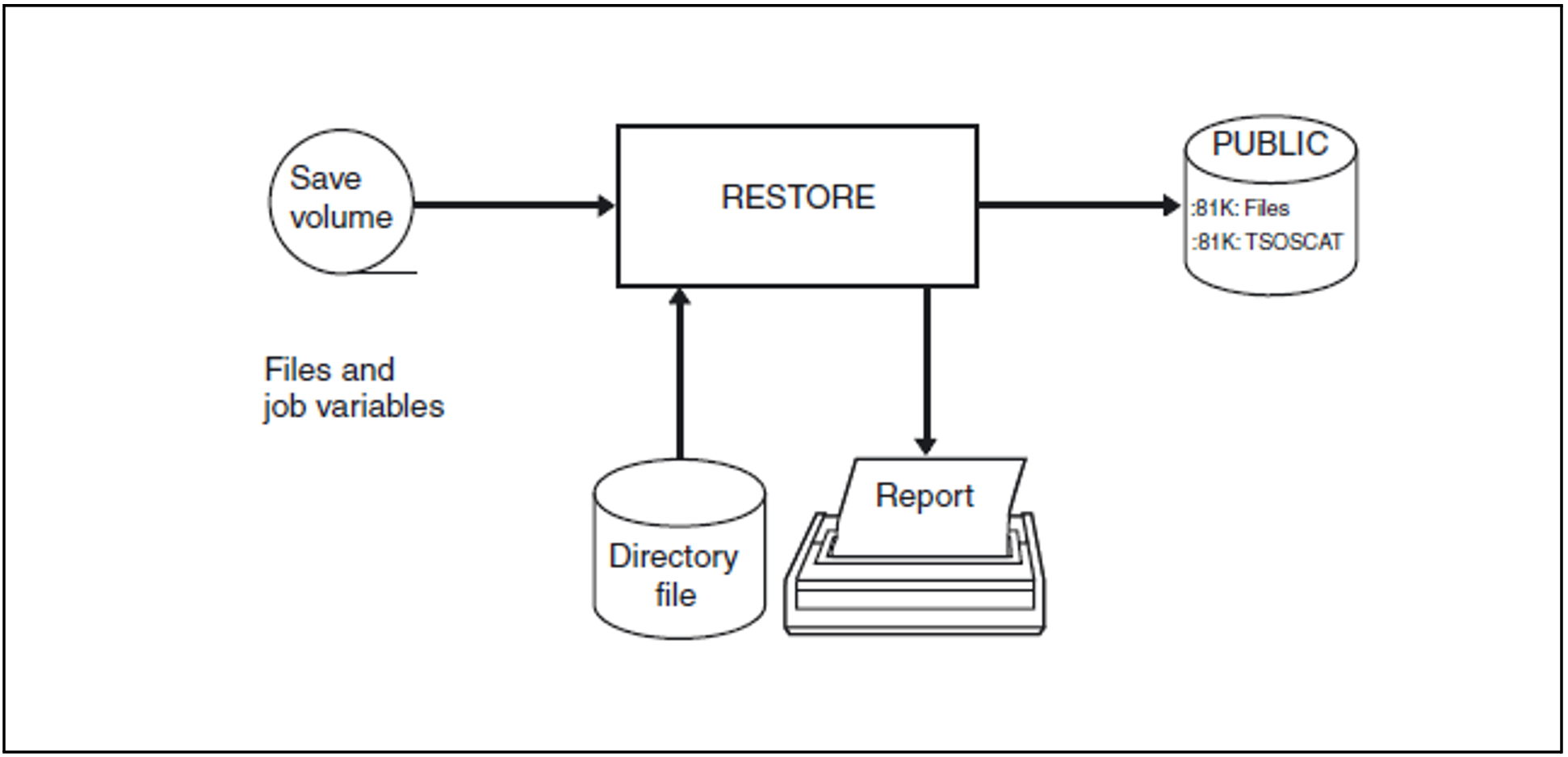

Figure 10: Restoration to other pubsets

/START-ARCHIVE

%  BLS0990 PROCESSING OF REP FILE ':SBZ3:$TSOS.SYSREP.ARCHIVE.120' STARTED
%  ARCLOAD Program 'ARCHIVE', version '12.0A' of '2018-06-04' loaded
           from file ':1OSH:$TSOS.SYSLNK.ARCHIVE.120'
%  ARCCOPY Copyright (C) FUJITSU TECHNOLOGY SOLUTIONS 2018.
            All rights reserved
%  ARC0001 ARCHIVE READY

*PARAM CATID=YES ——————————————————————————————————————————————————————  (1)

%  ARC0017 PARAM STATEMENT ACCEPTED

*FILES NAME=(FILE.,RENAME=:81K:FILE.) ——————————————————————————————————  (2)
*JOBVAR NAME=(JV1.,RENAME=:81K:JV1.) ———————————————————————————————————  (3)
*RESTORE DIRECTORY=DIR.SAVE.FILE,LIST=SYSOUT ———————————————————————————  (4)

*   R E S T O R E   C O M M A N D   L I S T I N G ***

PARAMETER VALUES:-
UNLOAD  = NO
RESTART = YES
OPERATOR= NO
SNR     = YES
CATID   = YES
STREAM  = YES

FILES NAME=(FILE.,RENAME=:81K:FILE.)
JOBVAR NAME=(JV1.,RENAME=:81K:JV1.)
RESTORE DIRECTORY=DIR.SAVE.FILE,LIST=SYSOUT
%  ARC0002 STATEMENT ACCEPTED. ARCHIVE SEQUENCE NUMBER 'A.100817.150047',
           VERSION '12.0A'
%  ARC0033 ARCHIVE SUBTASK TSN '0GLH' GENERATED
%  ARC0815 SUBTASK '0' HAS TRANSFERRED '616' PAM PAGES FOR '4' FILES
           AND '3' JVS IN '0' SECONDS

%  ARC0003 ARCHIVE STATEMENT COMPLETED

*END

%  ARC0009 ARCHIVE TERMINATED

(1)	This statement specifies that the catalog ID is to be used.
(2)	The NAME operand in the FILES statement specifies the files to be processed by ARCHIVE. The RENAME operand defines a different file name when reading in and a different pubset as the destination.
(3)	The NAME operand in the JOBVAR statement specifies the job variables that are to be processed by ARCHIVE. The RENAME operand defines a different file name when reading in and a different pubset as the destination.
(4)	The RESTORE statement instructs ARCHIVE to restore previously saved files and job variables. DIRECTORY=DIR.SAVE.FILE ARCHIVE is to draw the information required for the restoration run from the directory file. LIST=SYSOUT ARCHIVE is to output the report of the run to SYSOUT. By default the report is output to SYSLST.

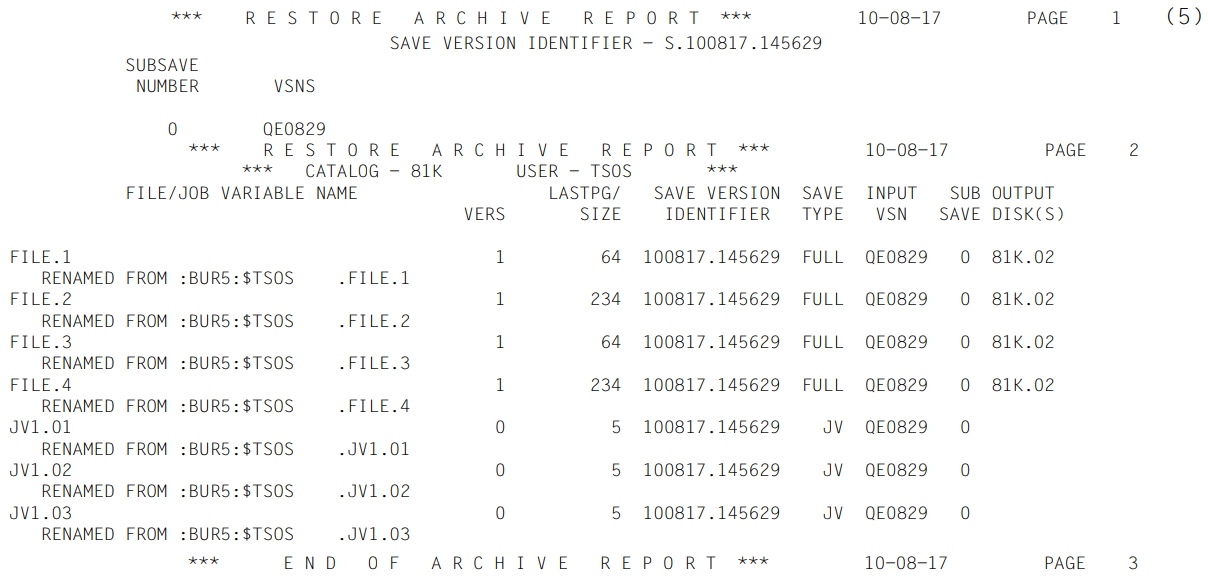

(5)	Report of the restoration run. The processed files and job variables are listed. The meanings of the columns are explained in section "ARCHIVE report".
