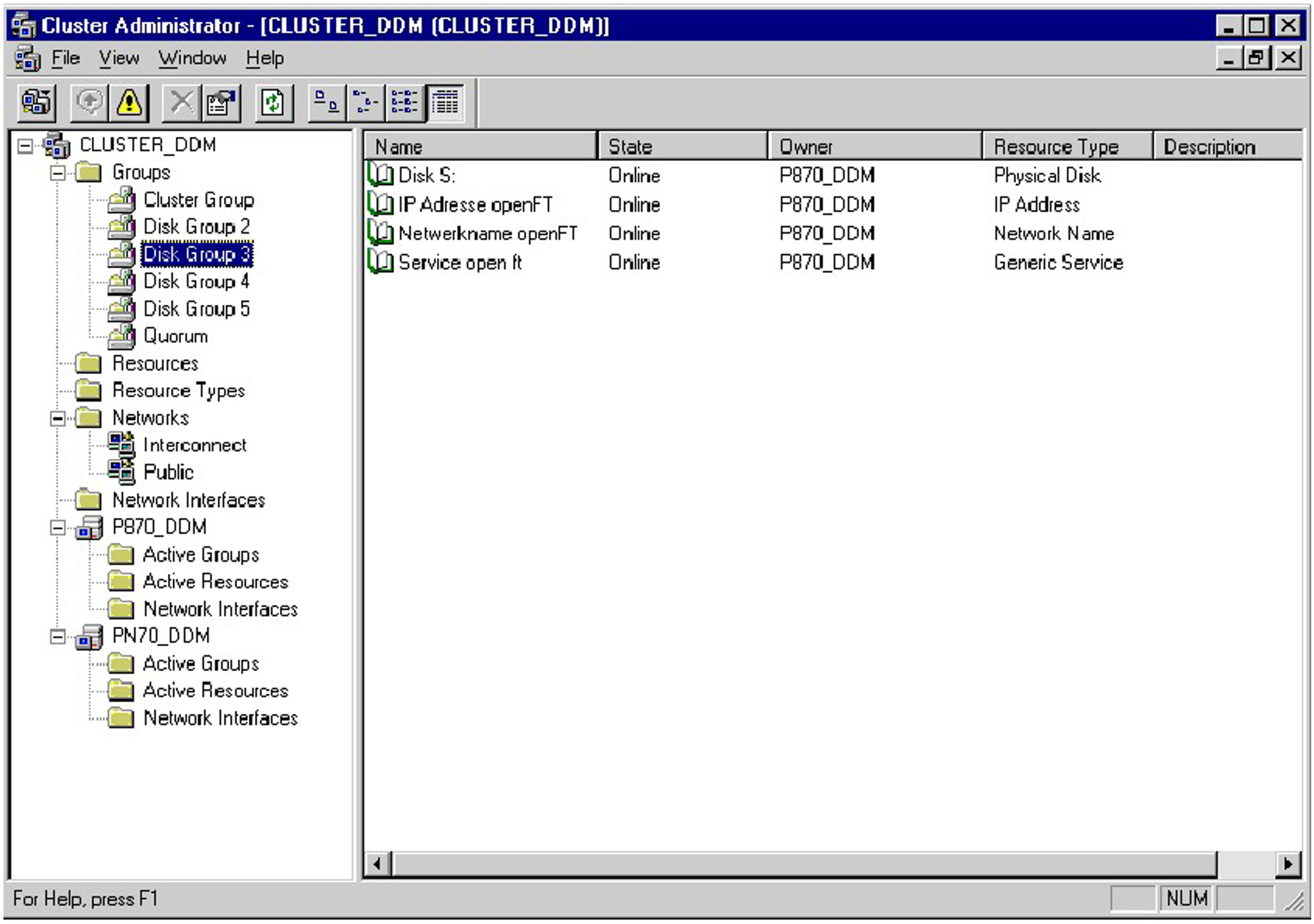

Use Program – Administrative Tools – Cluster Configuration in the Cluster Administrator Tool, which is a component of the Windows Server, to configure openFT in one of the two nodes of the Cluster.
Set up the relevant resources with the following properties:
1. | Name | e.g. IP Address openFT |
Resource Type | IP Address | |
Dependencies | Physical Disk (in this case Disk S:) | |
Advanced | Use standard or customize | |
Parameters | IP Address |
Press Apply to create the resource and bring it online (right mouse button – Bring Online).
Configure openFT in a cluster: IP Address - Dependencies
Configure openFT in a cluster: IP Address - Advanced
2. | Name | e.g. Network name openFT |
Resource Type | Network Name | |
Dependencies | Physical Disk (in this case Disk S:) | |
Advanced | use standard or customize | |
Parameters | Name e.g. OPENFT |
Press Apply to create the resource and bring it online (right mouse button - Bring Online).
Configuration openFT service:
3. | Name | e.g. Service openFT |
Resource Type | Generic Service | |
Dependencies | Physical Disk (in this case Disk S:) | |
Advanced | use standard or customize | |
Parameters | Service name: openFT - cluster | |
Registry Replication | SOFTWARE\Classes\SNI\WINTNS |
Press Apply to create the resource and bring it online (right mouse button – Bring Online).
|
Only necessary if CMX and TNS are used |
If CMX and TNS are not used, Registry Replication is not necessary.
