Main window

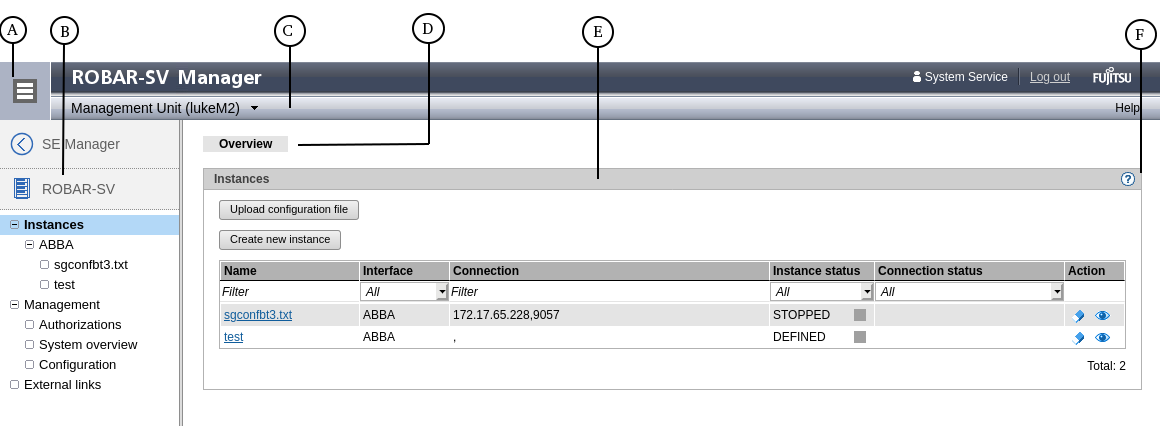

The main window of the ROBAR-SV Manager opens as soon as you have logged in on the ROBAR-SV Manager. It has the following layout:

A	Hide/show primary navigation	For hiding/showing primary navigation pane.
B	Primary navigation	For selecting an object or function. SE Manager return button (available only in SE Manager add-on pack). A green triangle indicates ROBAR-SV instances which are in the RUNNING state.
C	Header area	General ROBAR-SV information: user's account, Logout button, Management Unit (MU) switching, Help button for calling the homepage of the online help (see "Calling the online help"). When the user variables SYSNAME and SYSLOCATION are defined in the SNMP configuration file /etc/snmp/snmpd.conf, they are output in the header area under ROBAR-SV Manager.
D	Secondary navigation	For selecting the desired tab.
E	Work area	The work area can contain several areas. Each area is framed and has a header. In the work area: –  data is displayed (as a rule in tables) –  actions are initiated (by means of action icons or buttons)
F	Action icon "?"	Icon for calling the context-sensitive online help (see "Calling the online help").
