Rear of the Server Unit

Rear of the SU310

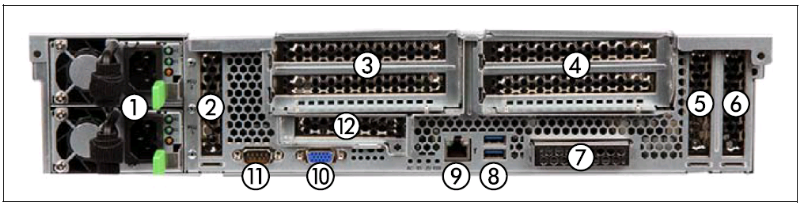

Figure 13: SU310 (rear)

No.	Meaning
1	Power cord connections
2	PCI slot 8 (low profile)
3	PCI slot 7 (top), PCI slot 6 (bottom)
4	PCI slot 4 (top), PCI slot 3 (bottom)
5	PCI slot 2 (low profile)
6	PCI slot 1 (low profile)
7	Onboard LAN (SYS1/SYS2 connections)
8	2x USB 3.0 ports
9	iRMC Management LAN (SYS0)
10	VGA connection (to KVM adapter)
11	Serial connection (normally unused)
12	PCI slot 5 (low profile)

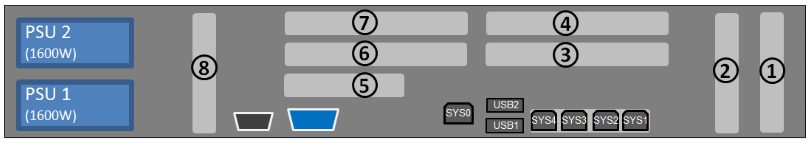

Figure 14: Principle of PCIe slot assignment at the rear of the device (SU310)

Rear of the SU320 / SU330

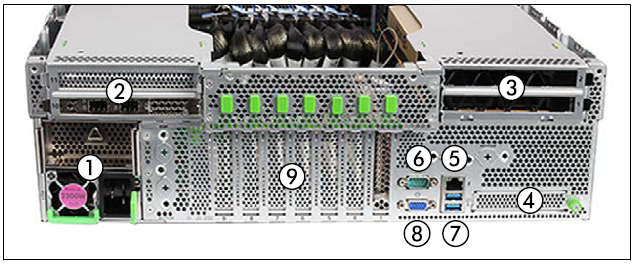

Figure 15: SU320/SU330 (rear)

No.	Meaning
1	Power cord connections (one or two)
2	PCIe slots 10 and 11 (riser module)
3	PCIe slots 1 and 2 (riser module)
4	OCP module (optional)
5	Management LAN
6	Serial connection
7	2x USB 3.0 ports
8	VGA connection (to KVM adapter)
9	PCIe slots 3 - 9 (low profile)

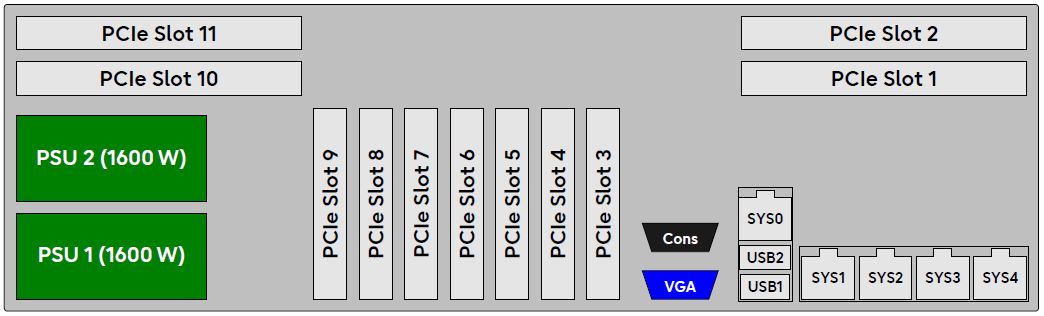

Figure 16: Principle of PCIe slot assignment at the rear of the device (SU320/SU330)

Rear of the SU330B

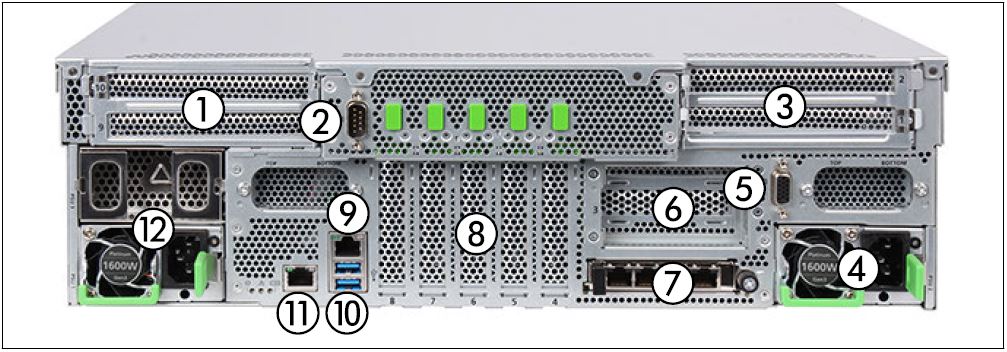

Figure 17: SU330B (rear)

No.	Meaning
1	PCIe slots 9 and 10 (riser module)
2	Serial connection
3	PCIe slots 1 and 2 (riser module)
4	Power cord connection
5	VGA connection (to KVM adapter)
6	PCIe slot 3 (LP riser module, optional)
7	OCP module (optional)
8	PCIe slots 4 - 8
9	Shared LAN
10	2x USB 3.1 ports
11	Management LAN
12	Power cord connections (up to two)

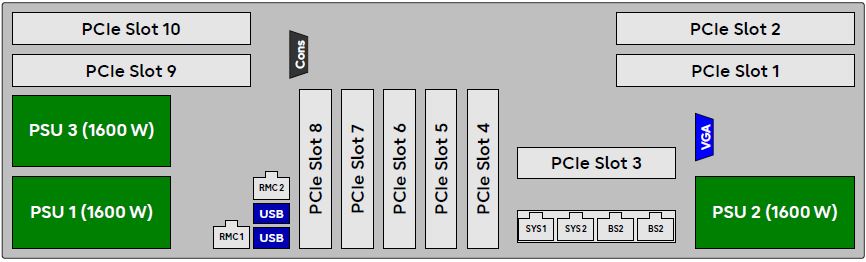

Figure 18: Principle of PCIe slot assignment at the rear of the device (SU330B)
