(ST) STATUS DISPLAY FRAME

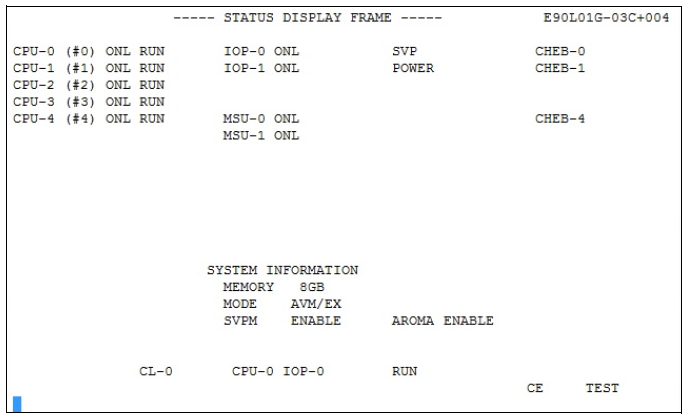

Figure 10: STATUS DISPLAY FRAME screen

This frame informs you about the current status of the server and its individual components (power on/off, online/offline, normal/maintenance state, etc.). Components which are not installed are not displayed. At most the following components are possible:

• CPU: CPU-0 through CPU-F

• I/O processor: IOP-0 through IOP-3

• Main Storage Unit: MSU-0 through MSU-3

• Channel box: CHEB-0 through CHEB-F

The important displays are the memory size, the addressing mode (MODE EXA or AVM/EX) and the availability of the SKP functionality (SVPM ENABLE display).
