The main scope of Storage Manager (further on referenced as StorMan) is information, monitoring, integration and dynamic management of storage resources:
Integrated Storage Management for
SE Manager on BS2000 SE servers
Common and stable interfaces for
Integration in BS2000 (SHC-OSD)
Integration with server management software such as openSM2
Encapsulation of the backend complexity of
Storage-vendor-specific interfaces

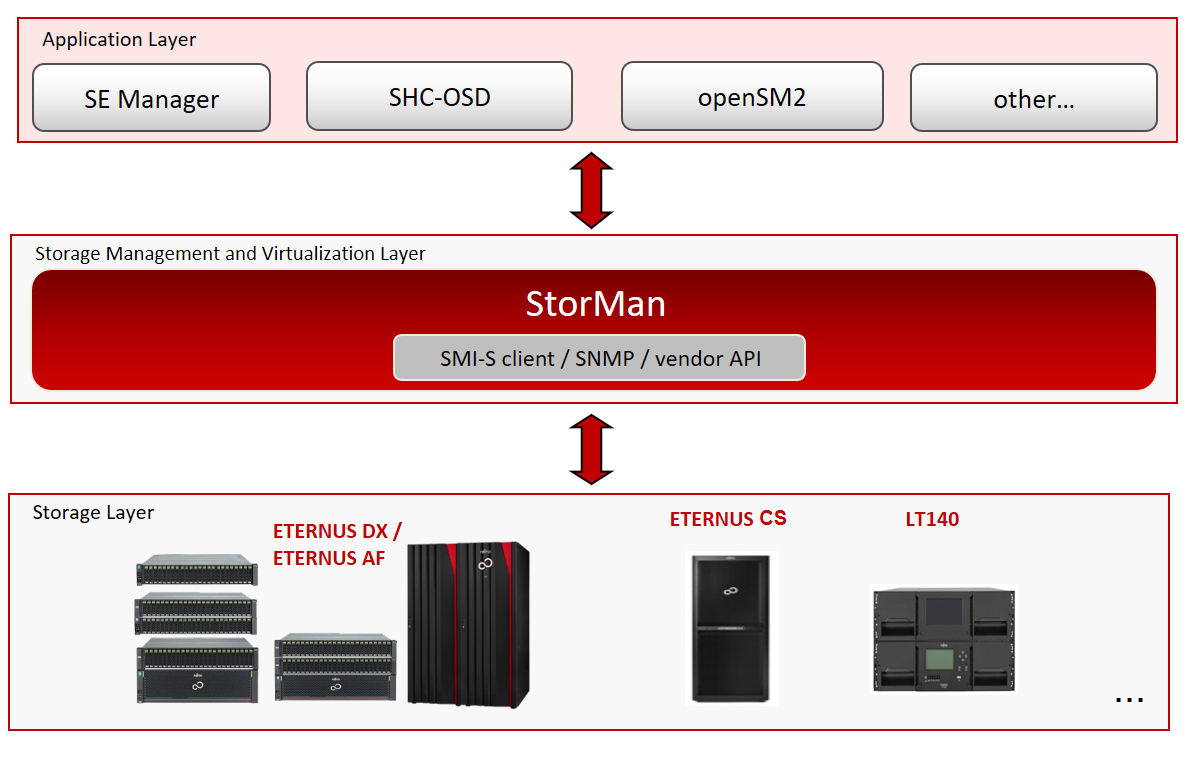

The following figure provides an overview of the architectural layers:
Figure 1: Overview
StorMan supports different interfaces to manage the storage systems. The base technology of StorMan is SMI-S (Storage Management Initiative Specification), the SNIA (Storage Networking Industry Association) standard for storage management. However, additional to SMI-S vendor-specific APIs and SNMP are used for integration.
StorMan offers Information and monitoring for storage systems:
Information about logical and physical components
Status monitoring
Statistical and performance metrics
Additionally, StorMan provides important functionality for:
Replication service: local replication (based on snap and/or clone technology) and remote replication
Storage cluster support
