BINILOAD example

The record type ARTICLE is stored in the database SHIPPING. The file SHIPPING.REC00009.00005 generated by BOUTLOAD is used as the input file.

/ADD-FILE-LINK LINK-NAME=DATABASE,FILE-NAME=SHIPPING.DBDIR
/SELECT-PRODUCT-VERSION PRODUCT-NAME=UDS-SQL,    VERSION=02.9B00
/START-UDS-BINILOAD
***** START        BINILOAD     (UDS/SQL  V2.9  1801 )     2019-01-29   09:27:54
 EXECUTION WITH CHECK.
 SCHEMA NAME IS MAIL-ORDERS
 SUBSCHEMA NAME IS ADMIN
 USER FILE RECORD LENGTH IS  112
 USER FILE BUFFER LENGTH IS 8192
 INPUT FILE 'SHIPPING.REC00009.00005
 INPUT RECORDNUMBER IS       55
 STORE RECORD NAME IS ARTICLE
 RECORD-DBKEY IS DISPL IS 0 , LENGTH IS 8
 RECORD-DISPL IS 0 , DISPL IS   25 , LENGTH IS   87
 RECORD-AREA NAME IS CLOTHING
 INSERT INTO SET NAME IS P-ORD-SPEC
 OWNER DBKEY IS DISPL IS    8 , LENGTH IS 8
 INSERT INTO SET NAME IS MIN-STOCK-LEVEL
 OWNER KEY IS DISPL IS   16 , LENGTH IS 1
 INSERT INTO SET NAME IS ARTICLES-AVAILABLE
 OWNER DBKEY IS DISPL IS   17 , LENGTH IS 8
 END
 BEGIN CHECK-RUN
 *** DATE AND TIME 2019-01-29  09:27:54
 BEGIN ALLOCATION
 *** DATE AND TIME 2019-01-29  09:27:54

 SET_NAME: P-ORD-SPEC
 SET_REF:     7
 SORTKEY TABLE, DBTT_COLUMN_NR:     1
 *** ICRELES: MOVE_ROUTINE SORTKF CREATED
 CALCKEY TABLE - INDIRECT
 *** DATE AND TIME 2019-01-29  09:27:54
 BEGIN TABLE-PROCESSOR
 *** DATE AND TIME 2019-01-29  09:27:54

 SET_NAME: MIN-STOCK-LEVEL
 SET_REF:     8
 SORTKEY TABLE, DBTT_COLUMN_NR:     1
 BEGIN TABLE-PROCESSOR
 *** DATE AND TIME 2019-01-29  09:27:54

 SET_NAME: ARTICLES-AVAILABLE
 SET_REF:    12
 SORTKEY TABLE, DBTT_COLUMN_NR:     1
 BEGIN TABLE-PROCESSOR
 *** DATE AND TIME 2019-01-29  09:27:55
 SEARCHKEY TABLE, DBTT_COLUMN_NR:     2
 INDIRECT CALC-SEARCH-KEY BUCKETS
 INDIRECT CALC-SEARCH-KEY BUCKETS
 *** NO ERRORS DETECTED DURING CHECK-RUN
 END CHECK-RUN
 *** DATE AND TIME 2019-01-29  09:27:55
 BEGIN ALLOCATION
 *** DATE AND TIME 2019-01-29  09:27:55
 *** DATABASE IS IN USE

 SET_NAME: P-ORD-SPEC
 SET_REF:     7
 SORTKEY TABLE, DBTT_COLUMN_NR:     1
 *** ICRELES: MOVE_ROUTINE SORTKF CREATED
 CALCKEY TABLE - INDIRECT
*** DATE AND TIME 2019-01-29  09:27:55
 BEGIN TABLE-PROCESSOR
*** DATE AND TIME 2019-01-29  09:27:55

 SET_NAME: MIN-STOCK-LEVEL
 SET_REF:     8
 SORTKEY TABLE, DBTT_COLUMN_NR:     1
 BEGIN TABLE-PROCESSOR
 *** DATE AND TIME 2019-01-29  09:27:55

 SET_NAME: ARTICLES-AVAILABLE
 SET_REF:    12
 SORTKEY TABLE, DBTT_COLUMN_NR:     1
 BEGIN TABLE-PROCESSOR
 *** DATE AND TIME 2019-01-29  09:27:55
 SEARCHKEY TABLE, DBTT_COLUMN_NR:     2
 INDIRECT CALC-SEARCH-KEY BUCKETS
 INDIRECT CALC-SEARCH-KEY BUCKETS
 BEGIN STORE DB-RECORD
 *** DATE AND TIME 2019-01-29  09:27:55
 STORING DATABASE RECORDS
 END STORE DB-RECORD

 *** DATE AND TIME 2019-01-29  09:27:55
 END CLOSE
 *** DATE AND TIME 2019-01-29  09:27:55

 ***** DIAGNOSTIC SUMMARY OF BINILOAD

              NO WARNINGS
              NO ERRORS
              NO SYSTEM-ERRORS

              55 RECORDS  STORED

 ***** END OF DIAGNOSTIC SUMMARY
 ***** NR OF DATABASE ACCESSES  :          196
 ***** NORMAL END   BINILOAD     (UDS/SQL  V2.9  1801 )    2019-01-29   09:27:55

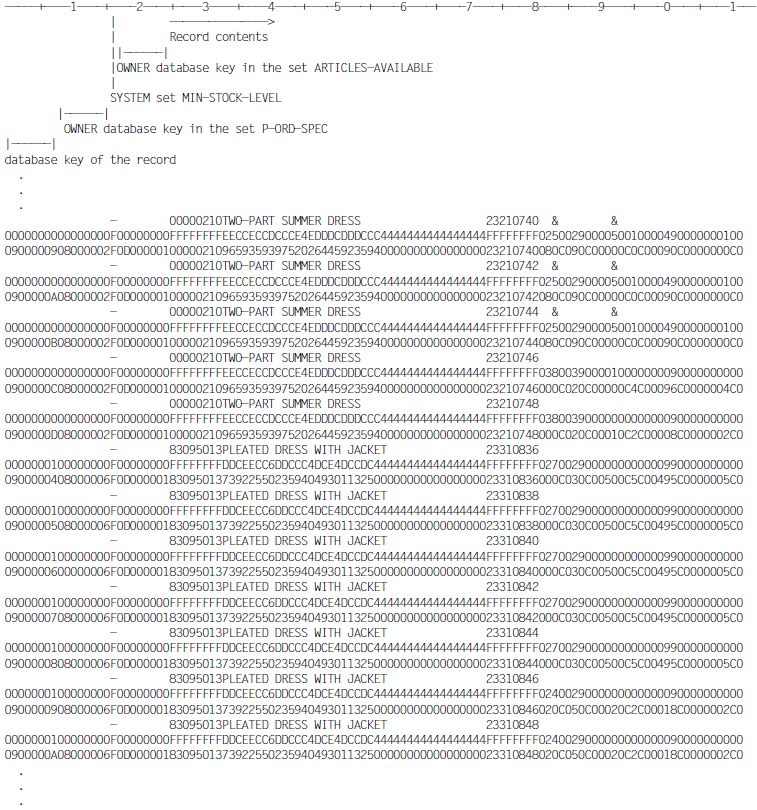

BINILOAD input file:

For an example of how BINILOAD and BOUTLOAD work together, refer to "Examples".
