StorMan WebUI is integrated in the SE Manager on M2000.
Preconditions:
Add-on pack name is STORMAN
due to integration the same browsers are supported as for SE Manager (SEM).
The Session Management is controlled by SE Manager. This means:
No extra authorization (Login) when calling StorMan. However the M2000 user has to be defined with the required roles as for StorMan access.
Main navigation is done by SE Manager
->StorMan WebUI is called by link:To change from SE Manager to the StorMan WebUI click the Storage Manager tab in the menu Hardware
->Storage.From every single screen, there is a ‘return to SE Manager’ function/button to the calling SE Manager screen.
Apart from that it is possible to move between different MUs
Session validation is done at each click, the session timer is reset.
In case of timeout detection during session validation a redirection to the SE Manager Log in screen is done.
The Log out function in the Header returns to the SE Manager Log in screen.
The language is set by SE Manager and valid for StorMan WebUI.
The Navigation is able to expand/collapse.
The StorMan Help System is automatically installed in SE Manager.

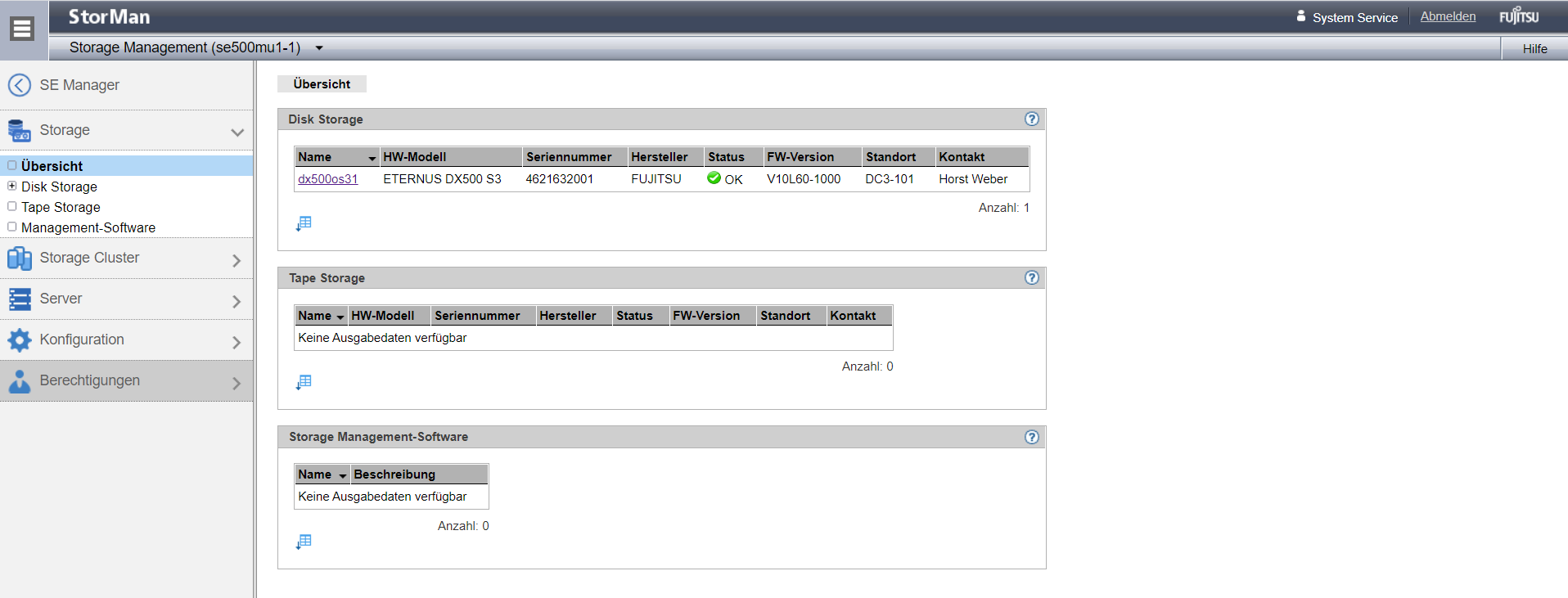

Example:
